Product Information

Featuring a distortion-free infinity mirror for full viewing. Supported with Safety-Shield backing and edgeguard frame to strengthen and support glass.

Colors

Bright White
Colors

Your Product Spec PDF Download:

-
-

Your Product Spec PDF Download:

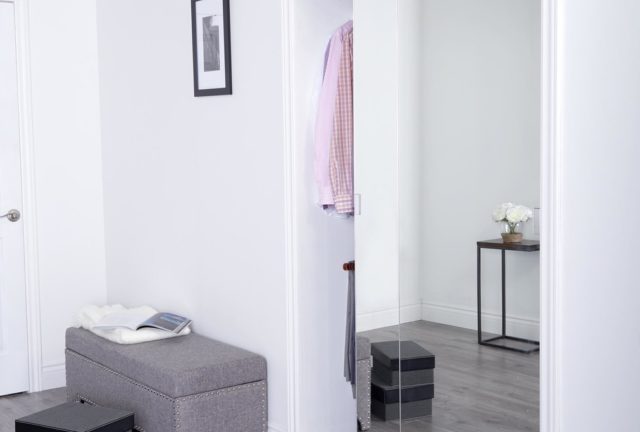

Premium Sliding Bypass Door with Polished Edge Mirror Insert & Edgeframe Stile

Product Information

Featuring a distortion-free infinity mirror for full viewing. Supported with Safety-Shield backing and edgeguard frame to strengthen and support glass.

Your Product Spec PDF Download:

Colors

Bright White
Colors

Standard Finished Opening Sizes

-
-

Specifications

  • Material: Steel
  • Glass / Panel / Insert Finish: Clear Mirror, Polished Edge

Details

  • Easy-Glide hardware allow doors to travel effortlessly
  • Easy to maintain, Safety-Shield backed back-painted white glass panels
  • Adjustable Quick-Click guides correct out-of-square door openings (+/- ¼") improving installation appearance and operation
  • Low profile Invisi-Track provides a hazard-free opening that allows for easy cleaning and smooth traveling doors
  • Wide curved steel frame with integrated handle design
  • Quick-Click Anti-Jump Connector; Bottom roll sliding system with bottom guide ensures doors do not disengage from the track
Technical Features Designed to Perform

Technical Features Designed to Perform

  1. Quick-Click anti-jump connector ensures doors remain on the track

  2. Invisi-Track; Low profile direct floor-mounted and pre-drilled track provides an exceptally smooth door travel

  3. Easy-Glide & Quick-Click Hardware; Doors come pre-assembled for quick and easy installation

Questions & Answers

  • Renin doors come in many sizes and are designed to fit properly and securely even in openings which are slight over or under size. For non-standard openings, Custom and Special Order doors can be ordered through Renin’s Customer Service or retail partners.

    For Sliding Bypass Doors, Renin offers door widths up to 144″ and height up to 96″. Custom widths greater than 107″ require 3 panels.

    For Sliding Bifold Doors, Renin offers door widths up to 72” and heights of 96”

  • Bi-fold Doors are available in 2-panel units for 24”, 30” and 36” standard openings.

    Bi-fold Door openings of 48”, 60” and 72” wide, you will need to order (2) 2-panel units, 24”, 30”, and 36” respectively.

  • Sliding Bypass Door – Width

    • 4′ (fits openings 44” to 48” wide)
    • 5′ (fits openings 56” to 60” wide)
    • 6′ (fits openings 68” to 72” wide)
    • 8′ (fits openings 92” to 96” wide)

    Sliding Mirror/Panel Bypass Door – Height

    • 80-1/2” (fits openings 80” to 81” high)
    • 96” (fits openings 95-1/2” to 96-1/2” high)

    Sliding Wood Framed Bypass Door – Height

    • 80-1/2” (fits openings 80” to 81” high)

    Sliding Bifold Door – Width

    • 24” (fits openings 24” to 24-1/4” wide)
    • 30” (fits opening 30” to 30-1/4”” wide)
    • 36” (fits openings 36” to 36-1/4” wide)

    Sliding Bifold Door – Height

    • 80-1/2” (fits opening 80-3/16” to 80-15/16” high)
    • 96” (fits openings 95-11/16” to 96-7/16” high)
