Renin

Product Information

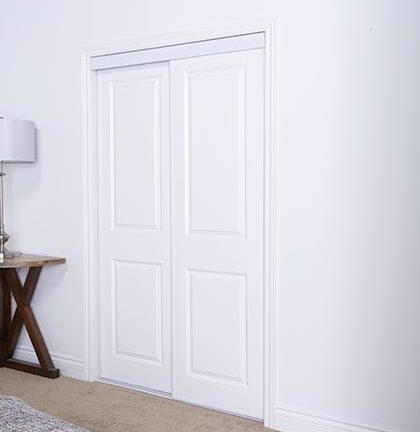

The Model BY0108 features painted flush inserts in a raised two-panel square top design, encased in a slimline frame in bright white. This door system can be used as is or add your own colour. These steel sliding bypass doors are constructed of hardboard and operate as a top roll system featuring Easy-Hang hardware, Quick-Click Anti-Jump Bottom Connectors & Invisi-Track System.

Colors

Bright White
Colors

Your Product Spec PDF Download:

Sliding Bypass Door with Primed 2 Panel Square Top Design Insert & Narrow Stile

Product Information

The Model BY0108 features painted flush inserts in a raised two-panel square top design, encased in a slimline frame in bright white. This door system can be used as is or … add your own colour. These steel sliding bypass doors are constructed of hardboard and operate as a top roll system featuring Easy-Hang hardware, Quick-Click Anti-Jump Bottom Connectors & Invisi-Track System.

Your Product Spec PDF Download:

Colors

Bright White
Colors

Standard Finished Opening Sizes

Specifications

  • Material: Steel
  • Glass / Panel / Insert Finish: 2 Panel Square Top Design Insert

Details

  • Easy-Hang hardware allow doors to lift and hook onto the top roll track system for fast installation
  • Easy to maintain, 2-pane square design panels primed ready-to-finish
  • Adjustable Quick-Click guides correct out-of-square door openings (+/- ¼") improving installation appearance and operation
  • Low profile Invisi-Track provides a hazard-free opening that allows for easy cleaning and smooth traveling doors
  • Narrow steel frame with integrated handle design
  • Quick-Click Anti-Jump Connector; Top roll sliding system with bottom guide ensures doors do not disengage from the track
  • Due to the nature of embossed panel, custom sizes are not available
Technical Features Designed to Perform

Technical Features Designed to Perform

  1. Quick-Click anti-jump connector ensures doors remain on the track

  2. Invisi-Track; Low profile direct floor-mounted and pre-drilled track provides an exceptally smooth door travel

  3. Easy-Hang & Quick-Click Hardware; Doors come pre-assembled for quick and easy installation

Resources

Questions & Answers

  • Bi-fold Doors are available in 2-panel units for 24”, 30” and 36” standard openings.

    Bi-fold Door openings of 48”, 60” and 72” wide, you will need to order (2) 2-panel units, 24”, 30”, and 36” respectively.

  • Sliding Bypass Door – Width

    • 4′ (fits openings 44” to 48” wide)
    • 5′ (fits openings 56” to 60” wide)
    • 6′ (fits openings 68” to 72” wide)
    • 8′ (fits openings 92” to 96” wide)

    Sliding Mirror/Panel Bypass Door – Height

    • 80-1/2” (fits openings 80” to 81” high)
    • 96” (fits openings 95-1/2” to 96-1/2” high)

    Sliding Wood Framed Bypass Door – Height

    • 80-1/2” (fits openings 80” to 81” high)

    Sliding Bifold Door – Width

    • 24” (fits openings 24” to 24-1/4” wide)
    • 30” (fits opening 30” to 30-1/4”” wide)
    • 36” (fits openings 36” to 36-1/4” wide)

    Sliding Bifold Door – Height

    • 80-1/2” (fits opening 80-3/16” to 80-15/16” high)
    • 96” (fits openings 95-11/16” to 96-7/16” high)
