Acme Modular Wall System

Rapid and Effortless Setup for Temporary Rooms

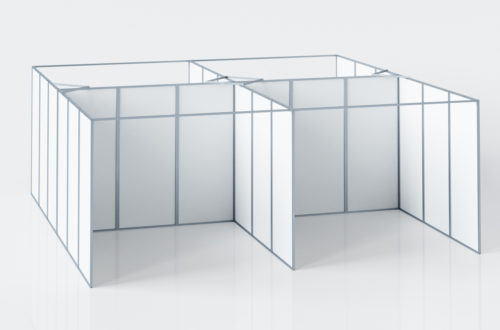

20-RN-3R-0005_02

Acme’s Modular Wall System is designed to accommodate ad-hoc construction of temporary rooms where privacy, durability and speed are required.

This easy to clean combination of high strength aluminum and lightweight impact grade polypropylene inserts create a cost-effective solution when temporary room enclosures are required.

Features & Benefits

  • Non-porous easy to clean frames and panels.
  • 1″ Aluminum frame with impact grade polypropylene insert provides a strong, lightweight and durable alternative to other materials.
  • Fast and easy assembly with multiple configurations including: U-Shaped, L-Shaped or Single Wall. Assembles in under 10 minutes.
  • Front cross-brace can be used to add a privacy curtain and provides additional support.
  • Includes 3 different size shims in order to accommodate for uneven floors.
  • 100% recyclable.

Technical Information

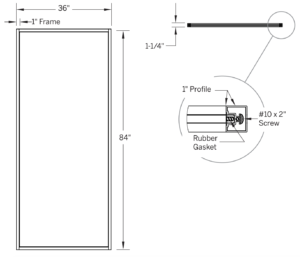

  • 36″ (w) x 84″ (h) (152.4 cm x 203.2 cm) Assembled Panel
  • 16 lbs. (11.44 kg) Assembled Panel
  • 6063-T5 Aluminum Frame, same 1″ profile for stiles and rails.
  • Anodized frame finish
  • 4 mm Impact grade polypropylene Insert

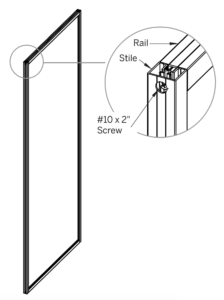

  • Assembled with #10 x 2″ Self-tapping screws through the stiles into the rails at each corner or wall.

System
Components

  • Panels Come Fully Assembled
  • Corner L Brackets
  • Panel Mending Plate
  • Zinc Plated Self Drilling Metal Screws
  • Leveling Shims (1/16″, 1/8″ and ¼″)

Typical
Applications

  •    Patient Rooms
  •    Isolation Rooms
  •    Office Partitions
  •    Waiting Areas
  •    Residential or Commercial    Storage

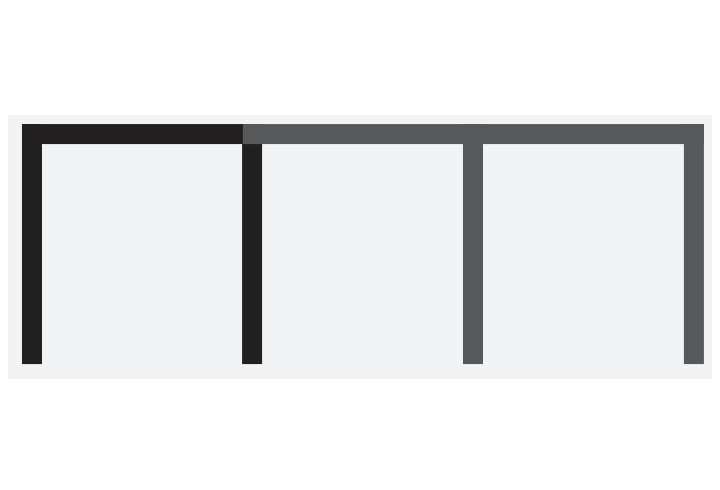

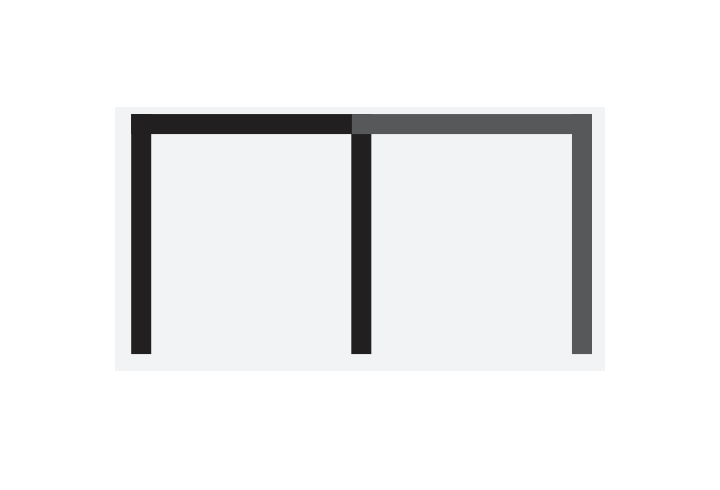

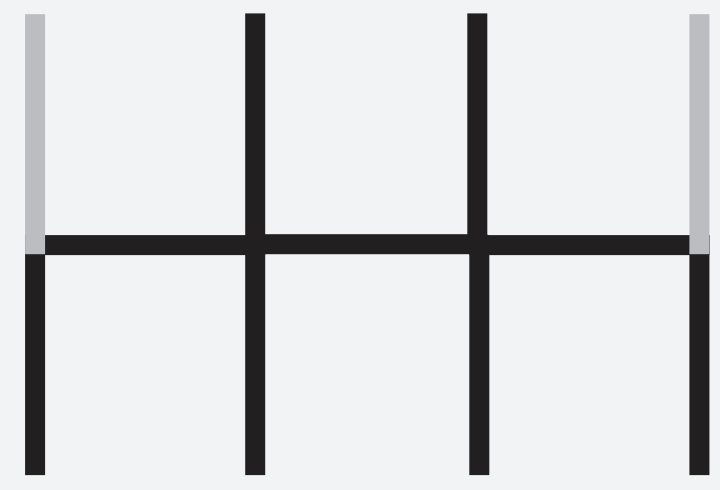

Configuration Options

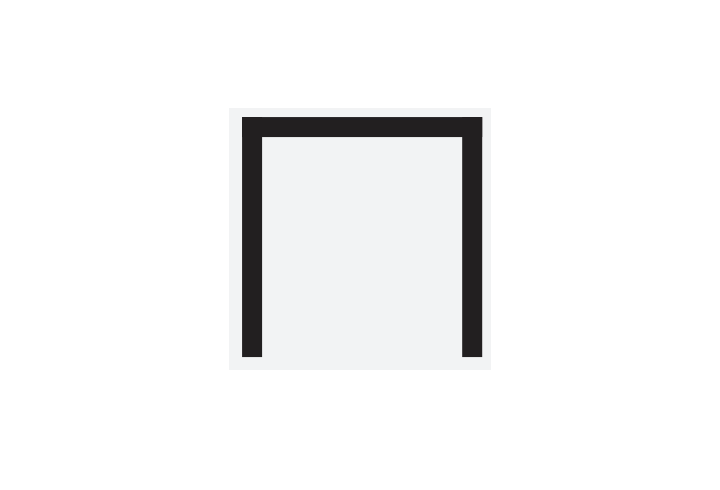

U-Shape
U-Shape + L
U-Shape + L + L
U-Shape + L + L
