Acme Modular Wall System

Rapid and Effortless Setup for Temporary Rooms

Acme’s Modular Wall System is designed to accommodate ad-hoc construction of temporary rooms where privacy, durability and speed are required.

This easy to clean combination of high strength aluminum and lightweight impact grade polypropylene inserts create a cost-effective solution when temporary room enclosures are required.

Features & Benefits

• Non-porous easy to clean frames and panels.
• 1″ Aluminum frame with impact grade polypropylene insert provides a strong, lightweight and durable alternative to other materials.
• Fast and easy assembly with multiple configurations including: U-Shaped, L-Shaped or Single Wall. Assembles in under 10 minutes.
• Front cross-brace can be used to add a privacy curtain and provides additional support.
• Includes 3 different size shims in order to accommodate for uneven floors.
• 100% recyclable.

Technical Information

• 36″ (w) x 84″ (h) (152.4 cm x 203.2 cm) Assembled Panel
• 16 lbs. (11.44 kg) Assembled Panel
• 6063-T5 Aluminum Frame, same 1″ profile for stiles and rails.
• Anodized frame finish
• 4 mm Impact grade polypropylene Insert

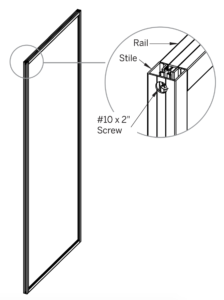

• Assembled with #10 x 2″ Self-tapping screws through the stiles into the rails at each corner or wall.

System
Components

• Panels Come Fully Assembled
• Corner L Brackets
• Panel Mending Plate
• Zinc Plated Self Drilling Metal Screws
• Leveling Shims (1/16″, 1/8″ and ¼″)

Typical
Applications

•    Patient Rooms
•    Isolation Rooms
•    Office Partitions
•    Waiting Areas
•    Residential or Commercial    Storage

U-Shape

U-Shape + L

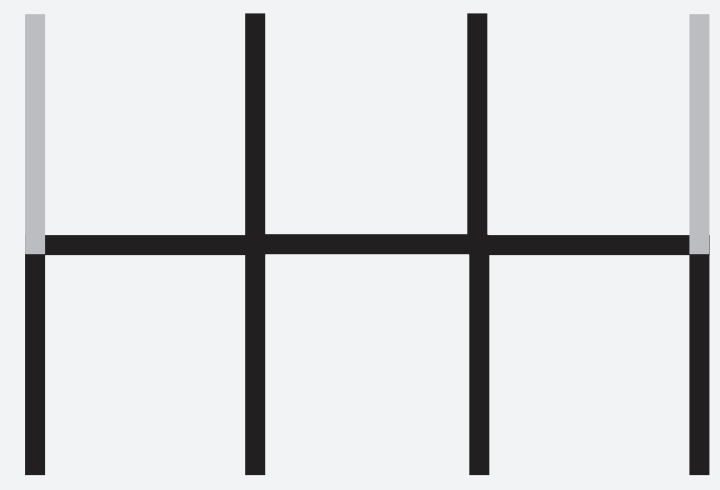

U-Shape + L + L

U-Shape + L + L
